Dawes Sideguard Infill Panel

Sideguard System Infill Panels - From Dawes Highway

features -> safety

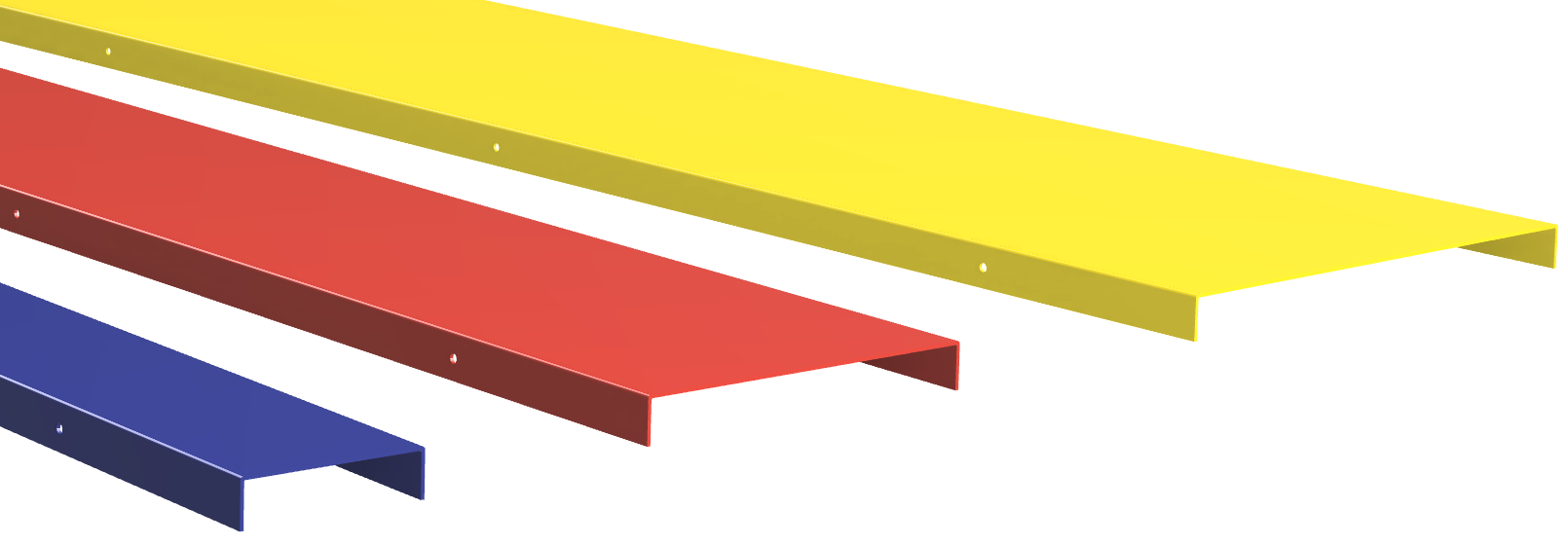

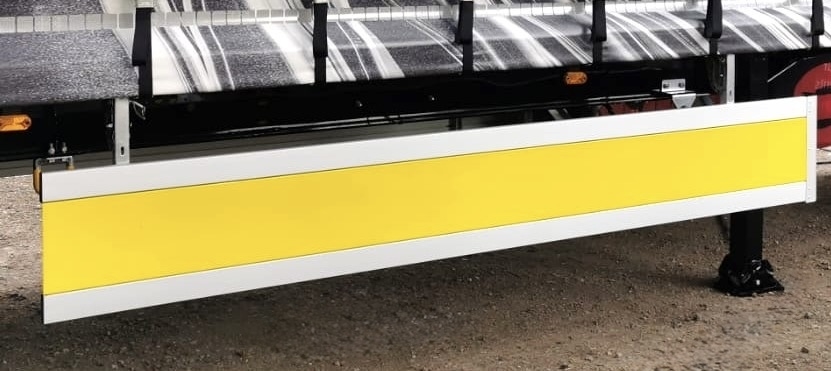

Aluminium Infill Panels for Upgraded Lateral Side Protection

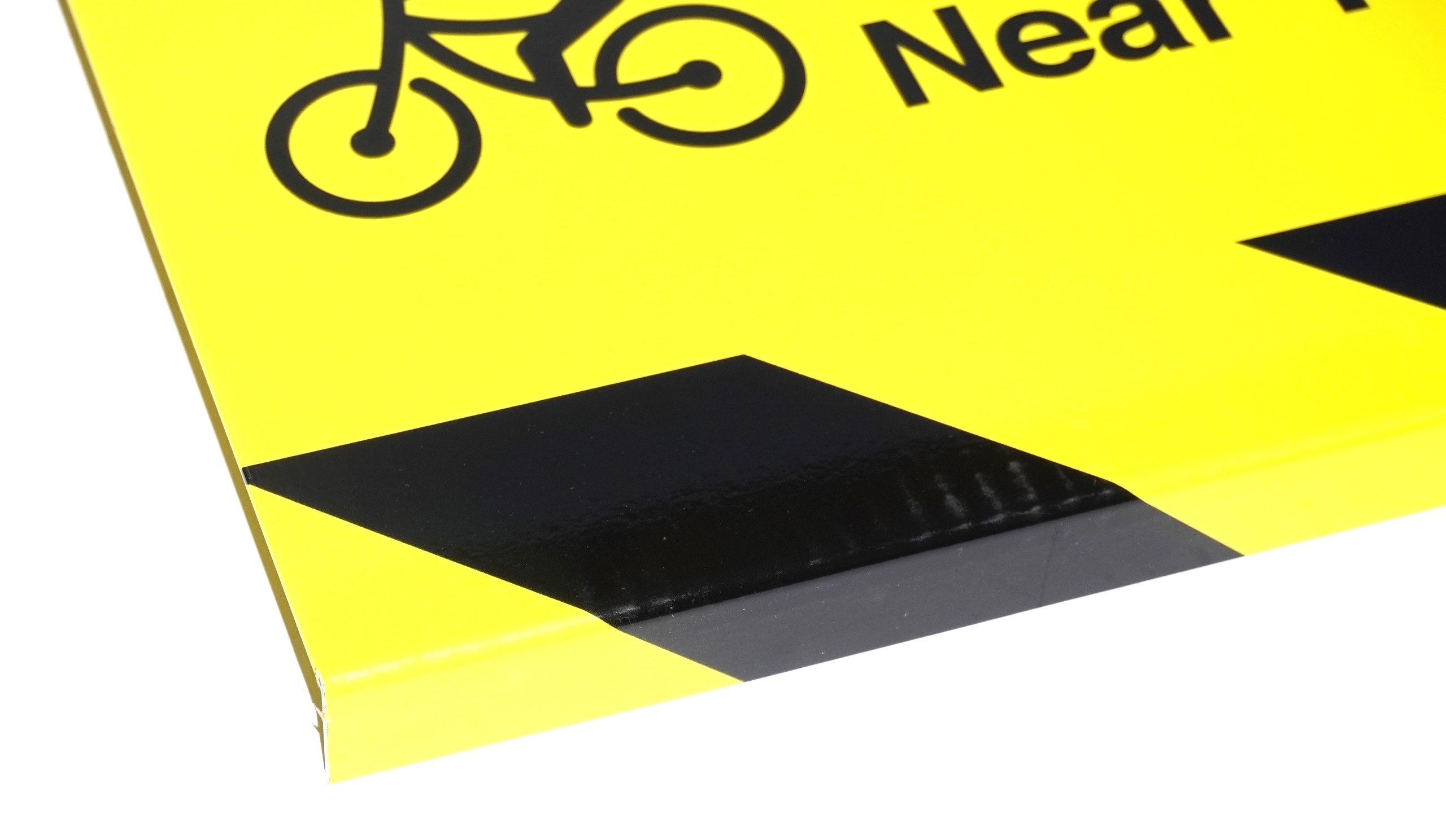

Manufactured from 2.0mm Aluminium with Vinyl-Wrapped Face

Our aluminium infill panel solution is supplied ready-to-fit, saving significant time and labour during the body building process.

Enhanced lateral side protection is a recognised progressive step in achieving a 5-star Direct Vision Standard (DVS) rating and is specified in major operating safety schemes such as FORS, Mission Zero, CLOCS, and others.

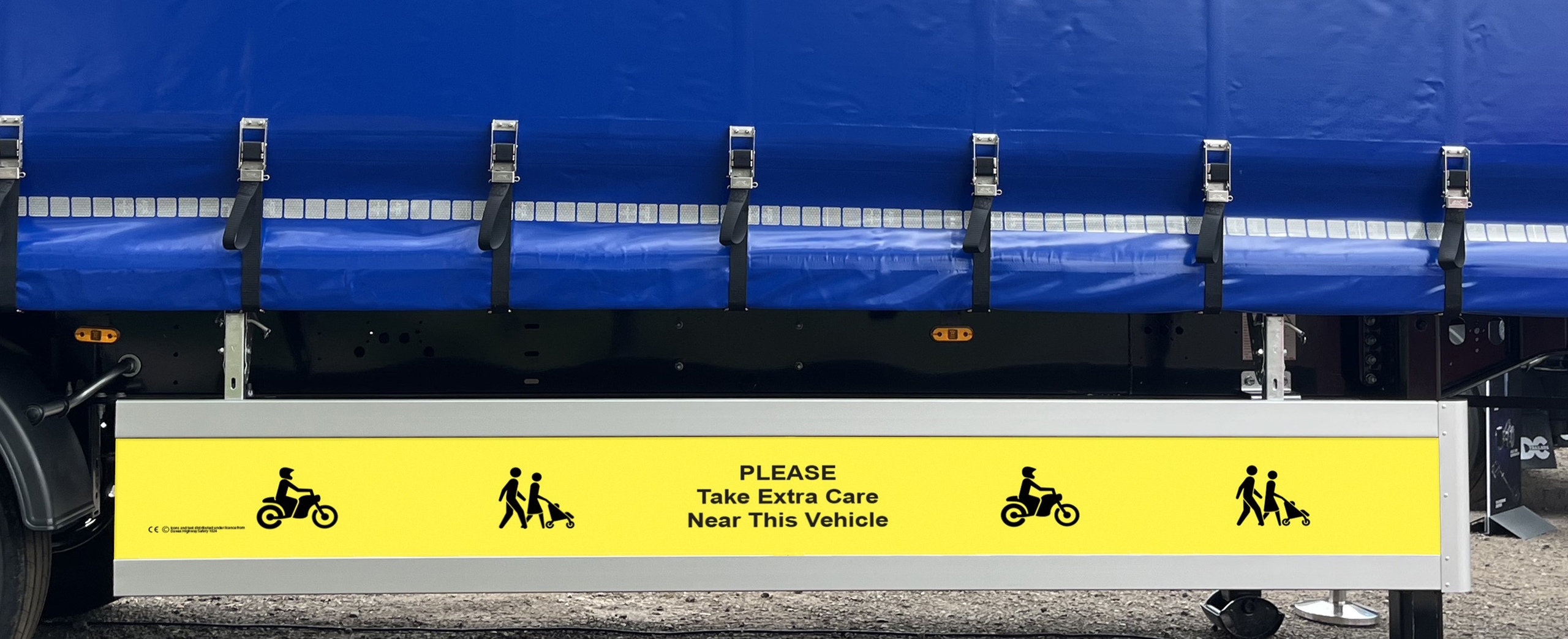

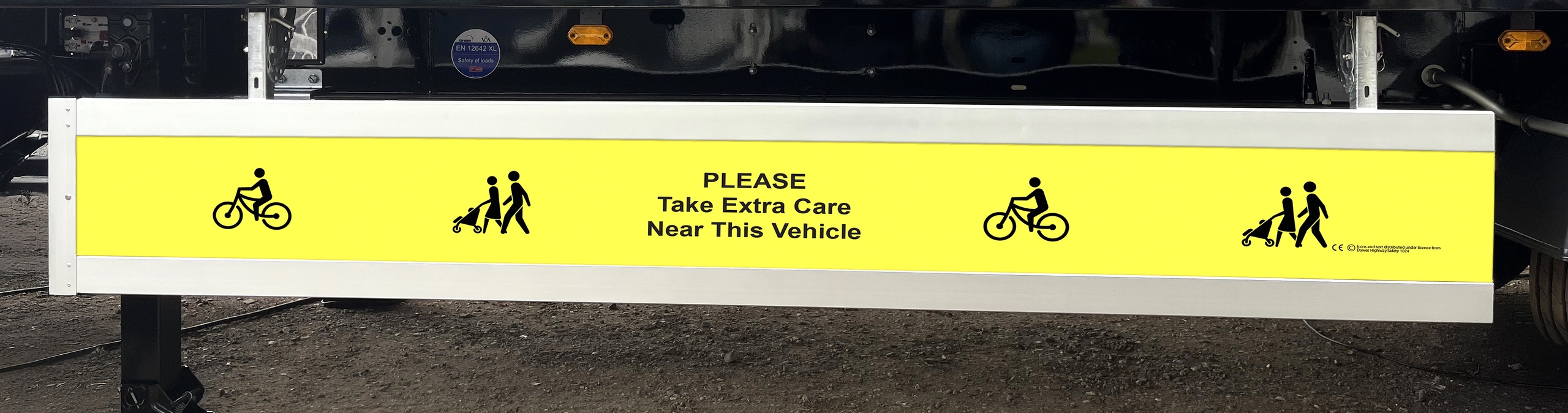

By fitting infill panels, you help prevent entanglement while displaying approved warning messages and/or safety icons under licence from Dawes Highway Safety.

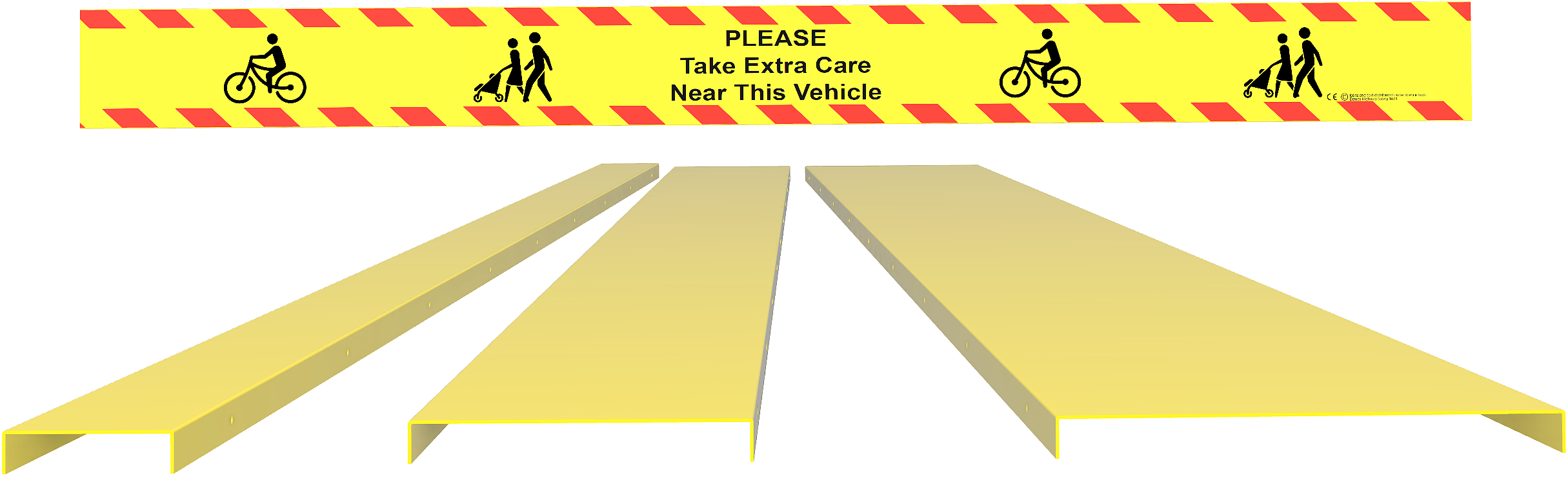

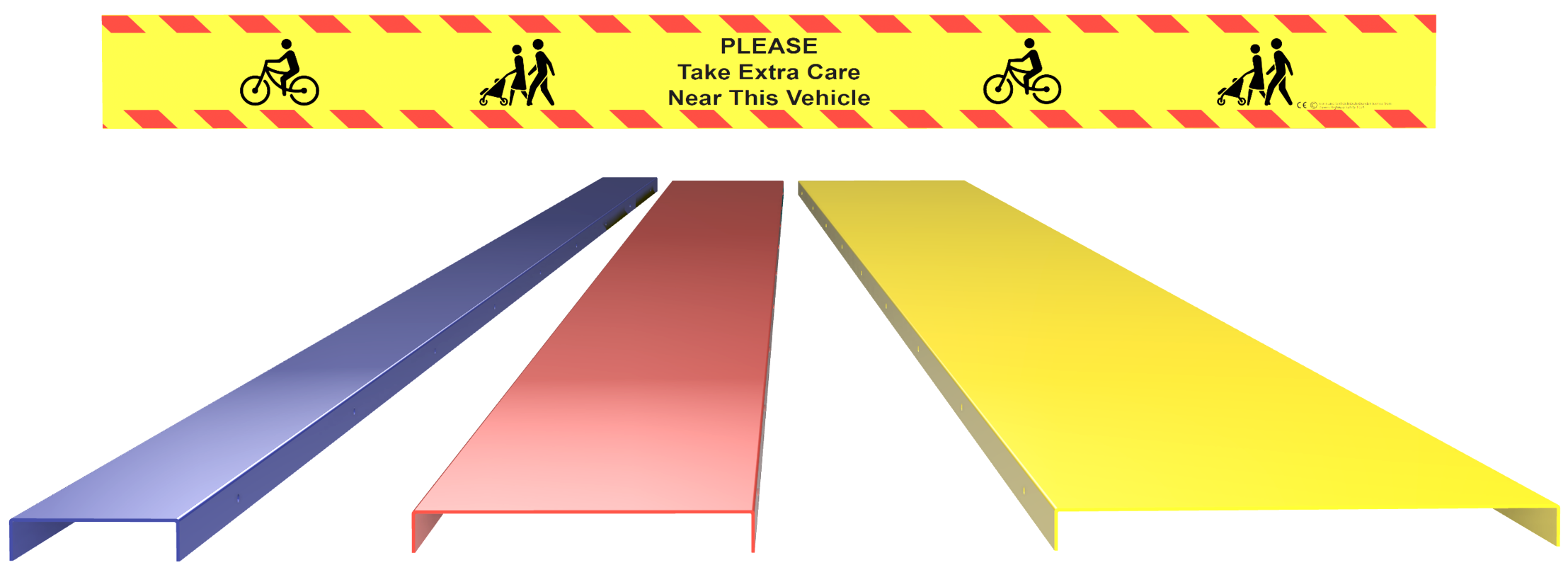

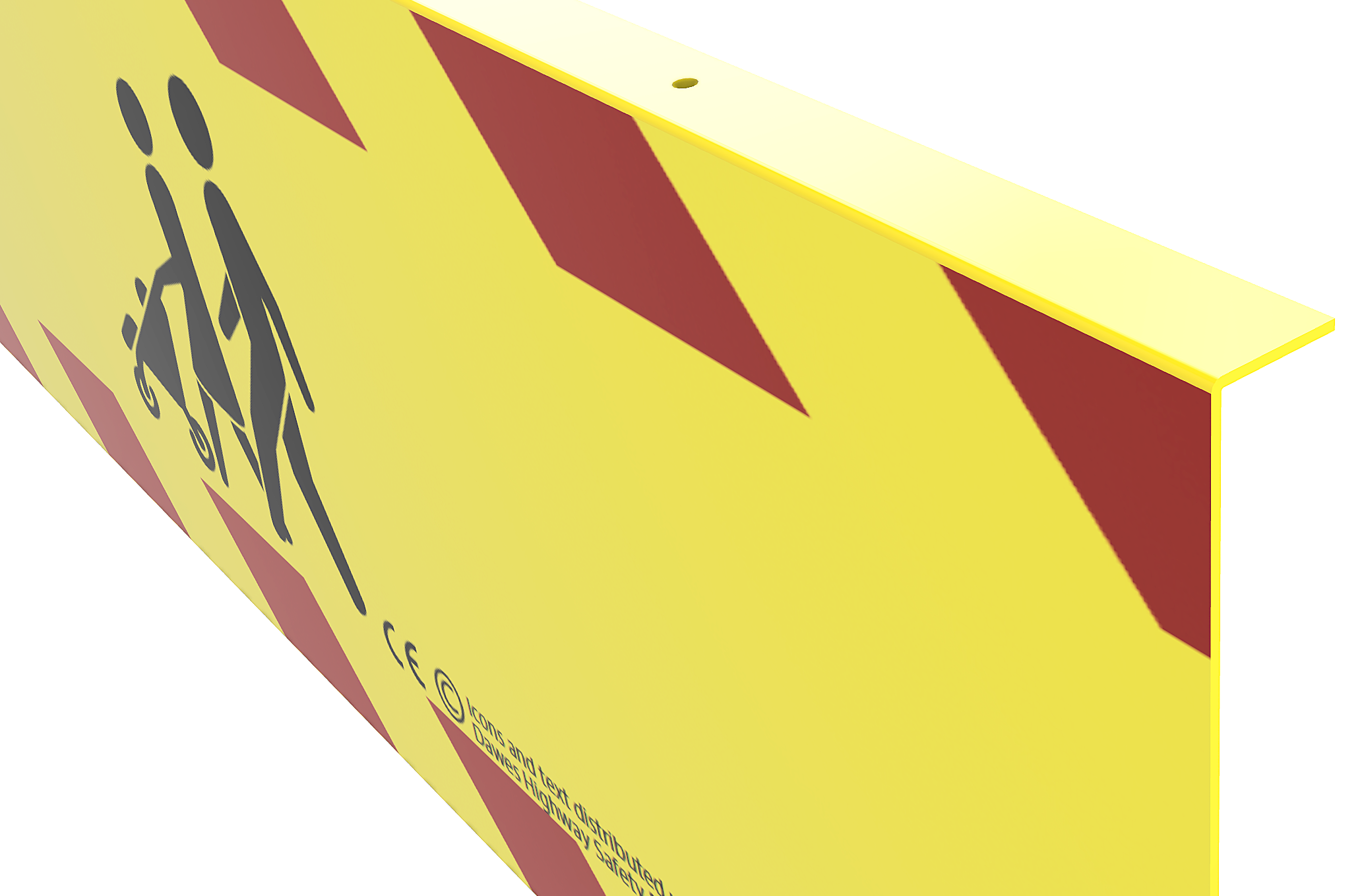

Logos, icons, and warning messages are digitally printed directly onto the face of the panel.

Key Features

  • Lengths: 1m, 2m, or 3m (bespoke lengths available upon request)
  • Heights: 300mm, 200mm, or 100mm to fit flush between side rails
  • Made from 2mm 1050A aluminium with heavy-duty vinyl-wrapped face
  • Excellent corrosion resistance
  • Resistant to power wash, salt, road film, UV, and detergents
  • Pre-drilled with 6mm holes at 300mm spacing along top and bottom returns
  • Available in any RAL colour to match customer specification — no extra charge
  • No set-up fees or hidden charges for logo inclusion or bespoke design
  • No edge sealing required
  • Meets standards under Section 42 of the IVA Inspection Manual
  • Suitable for all N2/N3 category lorries and O3/O4 category heavy trailers
  • Ready to fit — no folding, fabrication, or painting required
